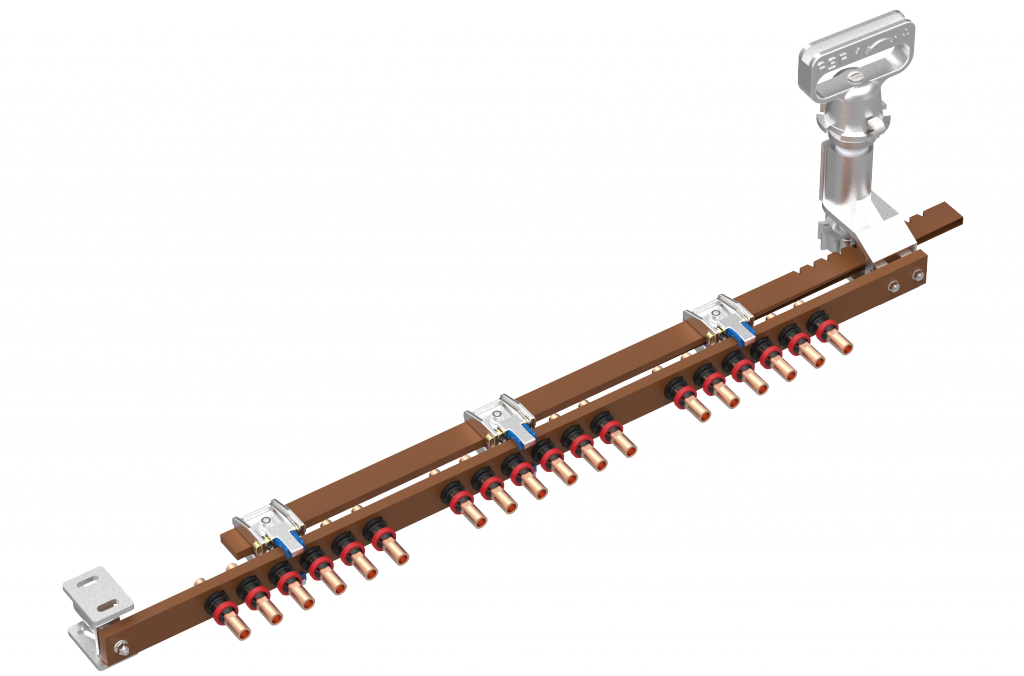

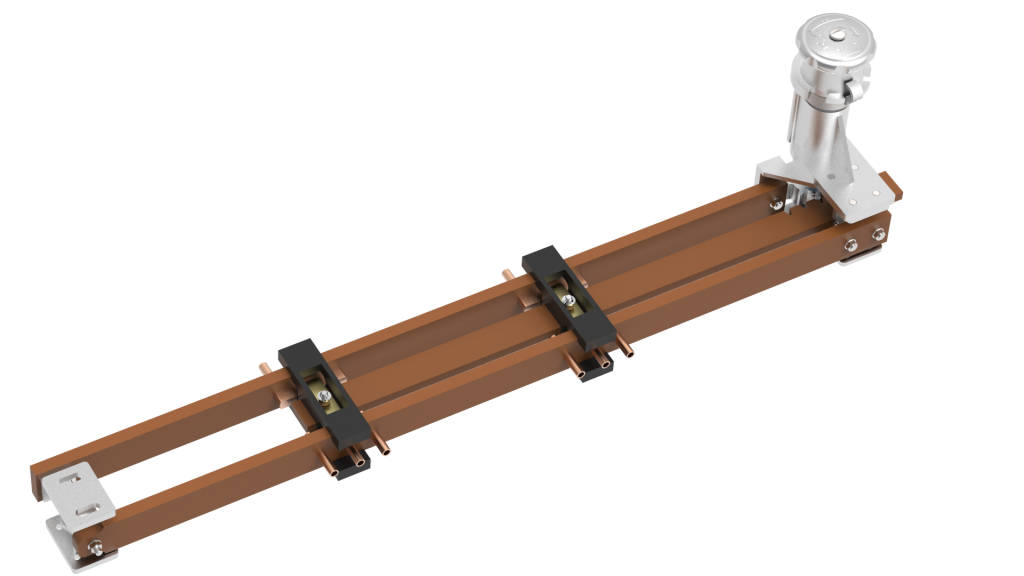

HM Type

Up to 45 kV Class, 150 A and 9 positions

Direct drive operation, from side wall of tank, or cover of Transformer
Fixing on tank, or cover of Transformer :

  • by bolting of the main bracket (hole dia 27 mm on tank or cover of Transformer)
  • by bolting of additional support (metallic bracket or insulating hook) on tank, or cover of Transformer

3 available heights for the main bracket (L=91, L=131, L=186)
Twinned units on several stages (identical or different) are available
Current ratings :

  • 30 A with tubular stationary contacts dia 3.1 x 5.0 mm
  • 63 A with tubular stationary contacts dia 5.1 x 7.0 mm
  • 150 A with removable tubular contacts

Additional information on our catalog
